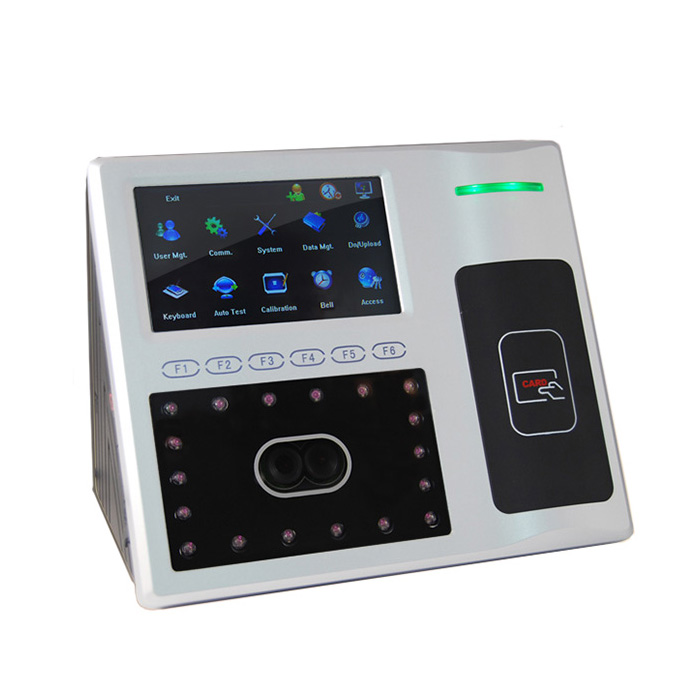

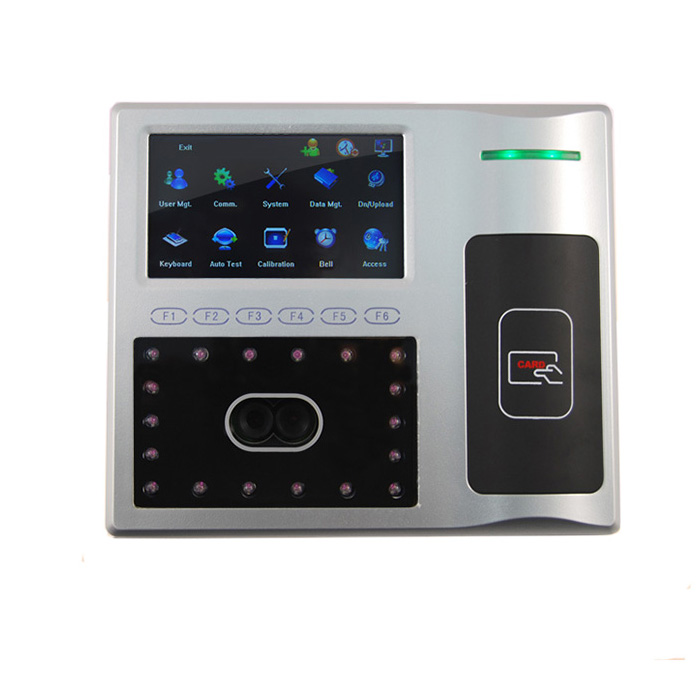

Iface801 TCP/IP USB communication fingerprint &face&card door lock time attendance access control and face recognition

Product Description

Iface801 multi-biometric identification time attendance and access control terminal adopts latest 600 platform with Face 7.0 algorithm and large capacity memory. Iface series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.

1. Identification methods include Face, Fingerprint/RFID and/or Password

2. Elegant ergonomic design

3. 4.3’’ TFT touch screen is user-friendly and very intuitive

4. 6 user-defined function keys

5. Contact relays for door access control (wires to door strike or 3rd party panel)

6. Web-server management software via IE browser

7. Optional extendable scheduled-bell

8. Infra-red optical system enables user-identification in poorly lit environments

9. Optional built-in battery backup provides approx 4 hours continuous operation.

10. Optional built-in wireless Wi-Fi or GPRS for wireless communication

11. Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.

12. Wiegand Output for connections to 3rd party access control panels.

CPU	Multi-Bio CPU 630 MHz
Memory	256M Flash, 64M SDRAM
Hardware Platform	XM600 Multi-Medium Development Platform
Fingerprint Sensor	Optical Fingerprint Sensor without film
Camera	High Resolution Infrared Camera
Display	4.3’’ TFT touch screen
Face capacity	1200
Fingerprint capacity	None
Card capacity	10000
Logs capacity	100,000
Algorithm Version	Face 7.0 & Finger 10.0
2000mAh backup battery	Optional
Communication	TCP/IP,RS232/485
USB-HOST	Two USB-Host
Wireless Wi-Fi	Optional
Time attendance Standard functions	ID Card(302 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST
Access control interfaces for	3rd party electric lock, door sensor, exit button
Wiegand Signal	Output
Optional functions	serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
Power supply	12V3A
Verification Speed	≤2 sec
Operating temp	0°C- 45 °C
Operating Humidity	20%-80%
Dimension	193.6146.8111 mm (LengthWidthThickness)
Gross Weight	1.9 kg

[Next : Iface802]→

Related Products :

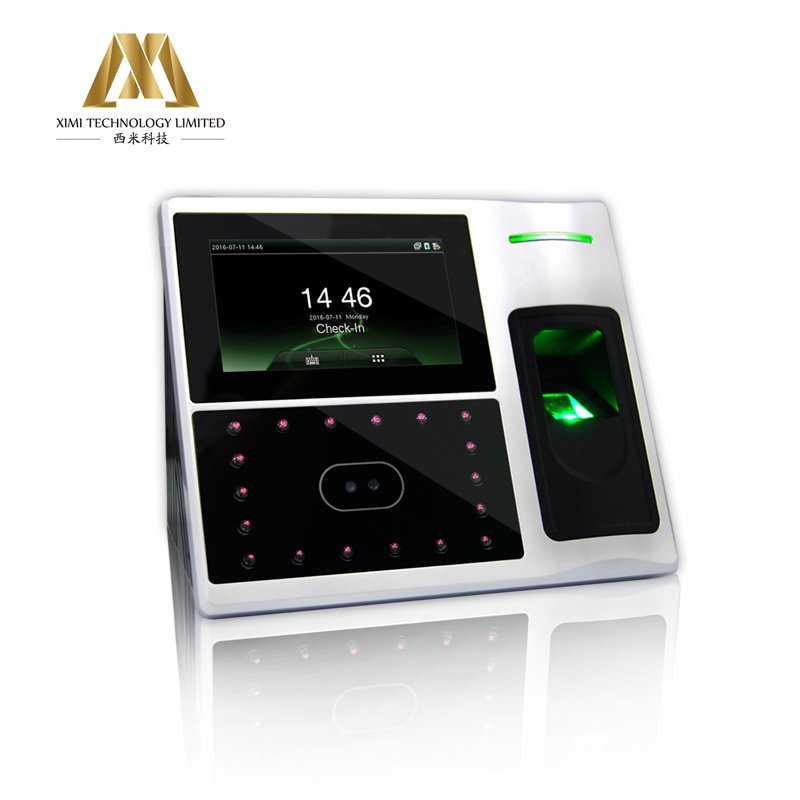

Iface802
