KR102E/M

产品名称：KR102E/M

产品编号：KR102E/M

详细说明：

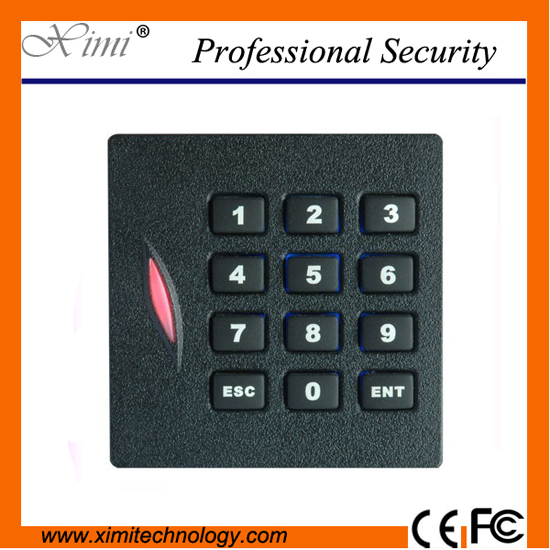

Card Reader With Keypad Ip65 Waterproof Card Reader 125Khz Rfid Card Reader Wiegand Output Reader Kr102 Access Control System

Product Description

Card Reader With Keypad Ip65 Waterproof Card Reader 125Khz Rfid Card Reader Wiegand Output Reader Kr102 Access Control System

Easy to install

125KHz Proximity Card Reader

Read Range: Up to 10CM(125KHz)

26/34bit Wiegand (default)

Easy to install on Metal Door Frame or Mullion

External LED Control

External Buzzer Control

Indoor / Outdoor Operation

Solid Epoxy Injection

Waterproof IP65

Reverse Polarity Protection

Elegant and robust design

Card Reader With Keypad Ip65 Waterproof Card Reader 125Khz Rfid Card Reader Wiegand Output Reader Kr102 Access Control System

Model	KR102E/M
Read Range	KR102E Up to 10 CM / KR102M Up to 5 CM
Reading time ( Card )	s 300 ms
Power	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Card Format	26bit Wiegand (E) 34bit Wiegand (M)
LED indicator	2 Color LED Indicators (Red and Green)
Beeper	yes
Operating temperature	-20° to +65°C
Operating Humidity	10% to 90% (relative humidity non-considered)
Color	Black
Material	ABS+PC with texture
Dimension: (WxHxT) mm	86 x 86x 18mm
Weight	120g
Index of Protection	IP65
